NIC Components

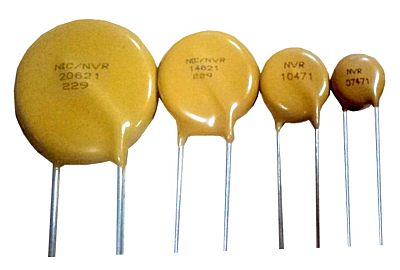

Radial Leaded (LDD) Metal Oxide Varistors Transient Voltage Protection
The newly released NVR series has large disc MOV construction for fast acting absorption of transient energy (joules) on 50 or 60 Hz power circuits, with operation to 1000 VAC or 1465 VDC.
Case sizes include 5mm ~ 22mm diameters with lead spacing (pitch) of 5mm, 7.5mm and 10mm. Varistor voltage range covers 11V ~ 1000Vrms (14V ~ 1465VDC) with maximum surge current ratings from 100A to 6500A (8/20uS waveform) and energy absorption capabilities of 0.1J ~ 620J (10/1000uS waveform).
Operating temperature range of -40°C ~ +85°C (no-derating up to +85°C).
NVR series is halogen free, RoHS compliant and designed for insertion into PCB assemblies, followed by wave (flow) soldering process.
Applications:
AC Power applications
Power supplies
AC adapters, AC/DC Adapters, Plug-in Adapters & Power Adapters
Lighting
Office equipment
Telecom equipment
