Produktportfolio / Vishay | Brand Draloric / single layer ceramic capacitors

Vishay | Brand Draloric

RF Power Plate Capacitors for Higher Voltages Class 1 Ceramic

• Rated Voltage 10 kV to 30 kV or 3.5 kV to 30 kV
• Max. Reactive Power 10 kvar to 160 kvar
• Max. Current 13 A to 90 A
• low loss
• Class 1 Ceramic
• Capacitance range 50 pF to 2.5 nF

Vishay | Brand Draloric

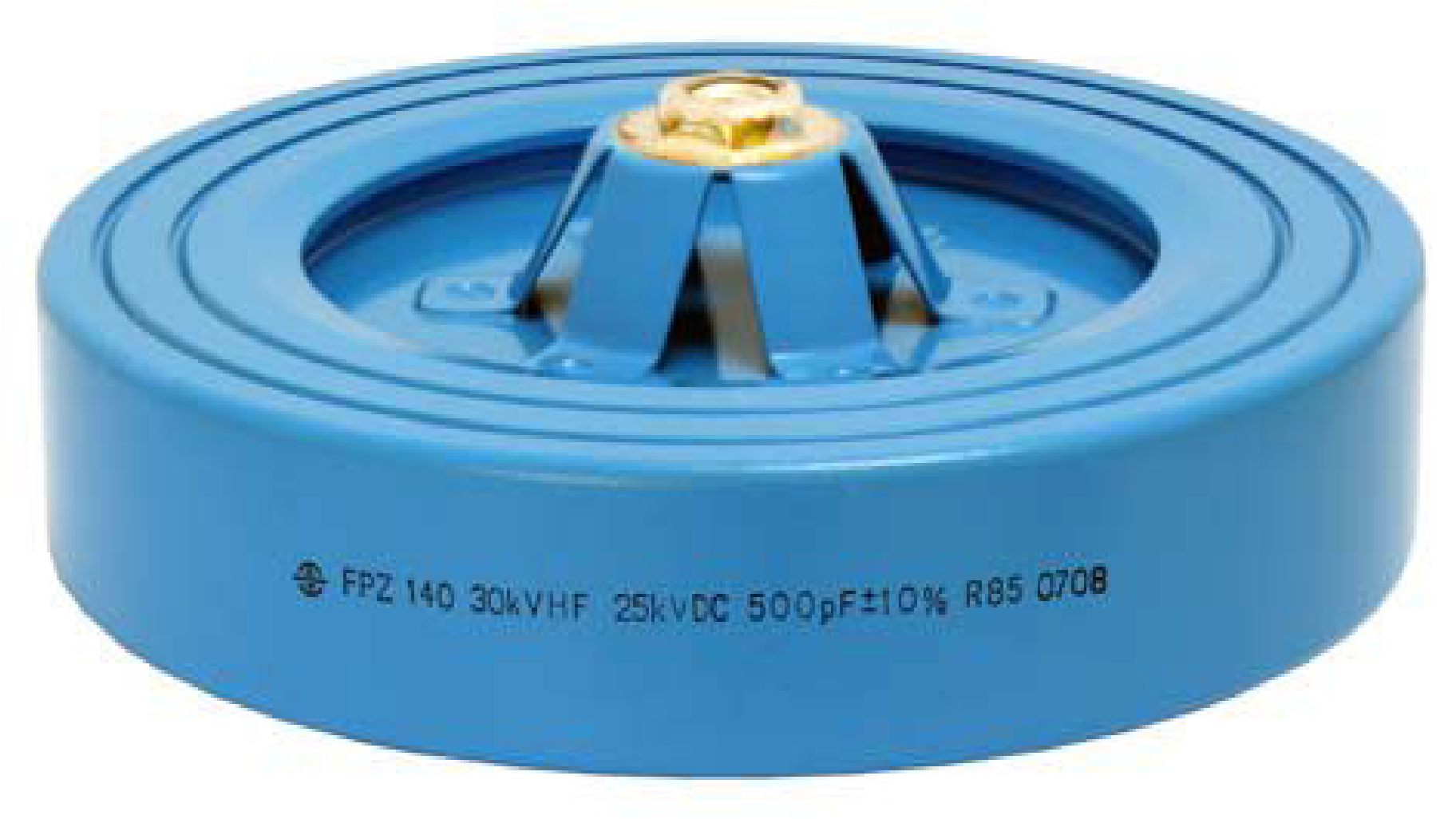

RF Power Plate Capacitors for HV Silicone Protection, Class 1 Ceramic

These high quality power plate
capacitors are designed for
usage in high frequency heating, welding equipment, and
working environments with ef
fects of moisture, dust and
other impurities where high voltage ratings are required ......

Vishay | Brand Draloric

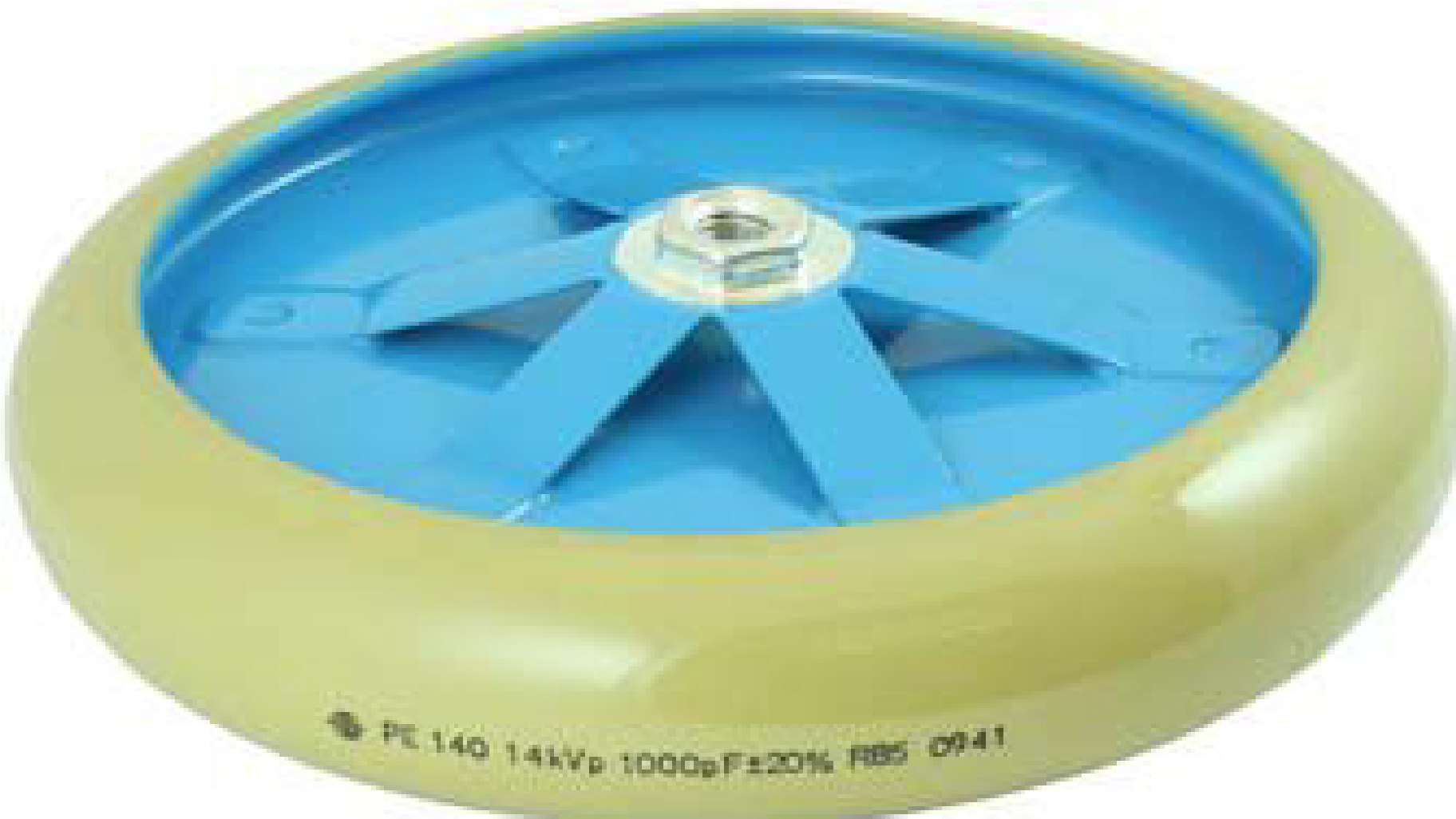

RF Power Plate Capacitors with Contoured Rim

• Wide range of capacitance values
• Rated Voltage 2.0 kV to 16kV
• max. Reactive Power 0.25kvar to 150kvar
• Max. Current 5.0A to 60A
• Low losses
• Class 2 ceramic
• Class 1 Ceramic
• Capacitance Range 5.6pF to 27nF
